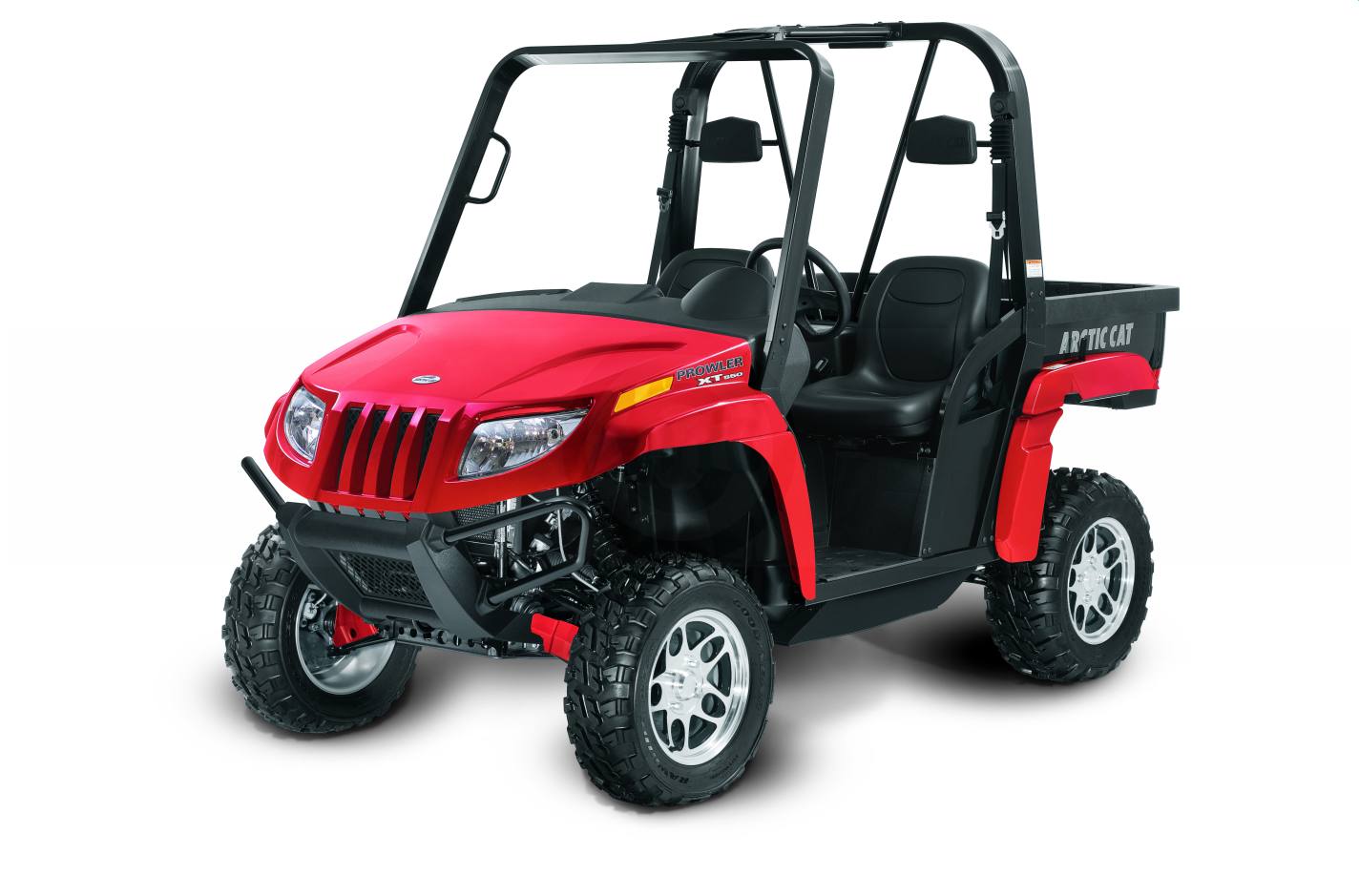

2010 Arctic Cat Prowler XT 550

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Specifications
    • Displacement (cc): 545
    • Engine Type: SOHC, 4-Stroke, 4-Valve
    • Bore x Stroke (mm): 92 x 82
    • Cooling System: Liquid w/Fan
    • Transmission: Automatic CVT wiESS, HilLo Range & Reverse
    • Drive System: 214 WD + Electric Diff Lock
    • Overall Width (in/cm): 61.5/156.21
    • Overall Height (in/cm): 76.25/193.68
    • Overall Length (inJcm): 118.751301.63
    • Wheelbase (in./em): 75/190.5
    • Suspension Travel- Front (in./em): 10/25.4
    • Suspension Travel- Rear (inJcm): 10/25.4
    • Ground Clearance (in./em): 10/25.4
    • Suspension Type - Front: Double A-Arm
    • Suspension Type - Rear: Double A-Arm
    • Front Brakes: Hydraulic Disc
    • Rear Service Brake: Hydraulic Disc
    • Tires - Front: 26x9-14 (10)
    • Tires - Rear: 26x11-14 (10)
    • Max Fuel Capacity (gal./liters): 8.2/31
    • Rack/Box/Flatbed Capacity - Rear (Ibs./kg): 600/272.15
    • Under-Hood Capacity (Ibs.lkg): 25/11.34
    • Towing Capacity (Ibs.lkg): 1500/680.4
    • Alternator Capacity (amps): 25
    • Speedometer: Digital
    • Odometer: Digital
    • Dry Weight (Ibs./kg): 1213/550.2
    • Minimum Operator Age: 16
    • Available Colors: Green, Red or Lime

    Specifications

    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 545 cc
    Bore and Stroke 92 x 82 mm
    Cooling Liquid w/Fan
    Chassis
    Front Suspension Double A-Arm
    Front Brakes Hydraulic Disc
    Front Tire 26x9-14 (10)
    Rear Suspension Double A-Arm
    Rear Brakes Hydraulic Disc
    Rear Tire 26x11-14 (10)
    Dimensions
    Dry Weight 1213 lbs. (550.2 kg)
    Front Travel 10 in. (25.4 cm)
    Fuel Capacity 8.2 gal (31 l)
    Rear Travel 10 in. (25.4 cm)
    Wheelbase 75 in. 190.5 cm
    Ground Clearance 10 in. (25.4 cm)
    Rack Capacity 600 lbs. (272.15 kg)
    Towing Capacity 1500 lbs. (680.4 kg)
    Transmission
    Transmission Automatic CVT wiESS, HilLo Range & Reverse
    Drive System 214 WD + Electric Diff Lock
    General
    Speedometer Digital
    Odometer Digital
    Colors Green, Red or Lime

    Compare Models

    		 Print








    Year 2010
    Manufacturer Arctic Cat
    Model Prowler XT 550
    Style Side x Side
    MSRP* $10,999.00
    Chassis
    Front Suspension Double A-Arm
    Front Brakes Hydraulic Disc
    Front Tire 26x9-14 (10)
    Rear Suspension Double A-Arm
    Rear Brakes Hydraulic Disc
    Rear Tire 26x11-14 (10)
    Dimensions
    Dry Weight 1213 lbs. (550.2 kg)
    Front Travel 10 in. (25.4 cm)
    Fuel Capacity 8.2 gal (31 l)
    Rear Travel 10 in. (25.4 cm)
    Wheelbase 75 in. 190.5 cm
    Ground Clearance 10 in. (25.4 cm)
    Box Capacity
    Rack Capacity 600 lbs. (272.15 kg)
    Towing Capacity 1500 lbs. (680.4 kg)
    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 545 cc
    Bore and Stroke 92 x 82 mm
    Cooling Liquid w/Fan
    Compression Ratio
    Fuel System
    Ignition
    General
    Speedometer Digital
    Tachometer
    Odometer Digital
    Colors Green, Red or Lime
    Warranty
    Transmission
    Transmission Automatic CVT wiESS, HilLo Range & Reverse
    Drive System 214 WD + Electric Diff Lock
