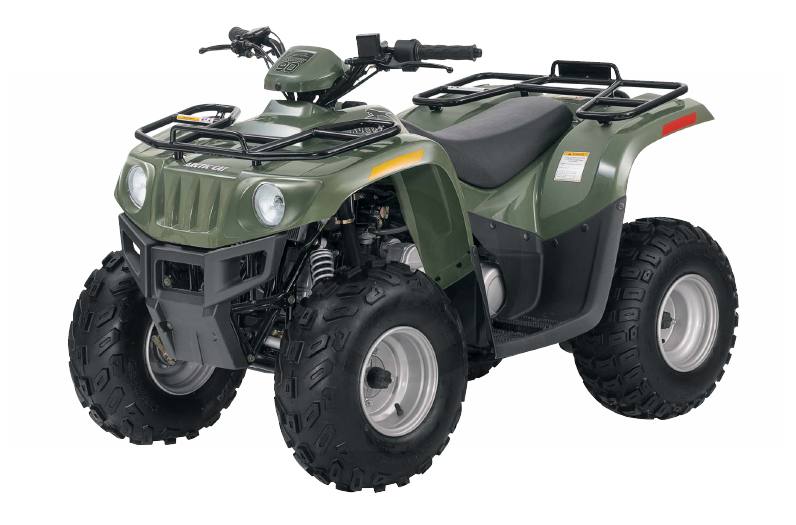

2009 Arctic Cat 90 SE

Now until September 30, 2010
$224.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Show them the kind of adventure they've only dremaed of.


It's true when they say big things come in small packages. And the 90 SE is no exception. With a practical 90cc engine that comes with a speed limiter, headlights and reverse. You can ensure their dreams become reality in a worry free and natural environment.

  • Headlights and tailight: Two headlights and a taillight give it the same look as Mom and Dad's.
  • Racks: Steel Racks provide plenty of storage and strength fro all your kid's gear.
  • Styling: Cool look and style that looks just like the adult ride. Available in Marsh Green.
  • Independent front suspension: The independent single A-arm front suspension features preload adjustable shocks for an ultra-smooth ride.
Specifications
  • Displacement (cc): 90
  • Engine Type: SOHC, 4-Stroke, 2-Valve
  • Bore & Stroke (mm): 47 x 51.8
  • Cooling System: Air
  • Transmission: Automatic CVT
  • Drive System: 2 WD
  • Overall Width (in./cm): 34.5/87.6
  • Overall Height (in./cm): 37.9/96.2
  • Overall Length (in./cm): 57.8/146.8
  • Wheelbase (in./cm): 38.4/97.5
  • Suspension Travel — Front (in./cm): 2.8/7.1
  • Suspension Travel — Rear (in./cm): 2.9/7.3
  • Ground Clearance (in./cm): 7.3/18.5
  • Suspension Type — Front: Single A-Arm
  • Suspension Type — Rear: Swing Arm
  • Front Brakes: Drum
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 20x7-8
  • Tires — Rear: 19x8-8
  • Max Fuel Capacity (gal./liters): 1.45/5.5
  • Rack Capacity — Front (lbs./kg): 10/4.5
  • Rack/Box/Flatbed Capacity — Rear (lbs./kg): 15/6.8
  • Alternator Capacity (amps): 5
  • Dry Weight (lbs./kg): 265/120.2
  • Minimum Operator Age: 10
  • Available Colors: Green
  • Special Features: Reverse, Headlights, Y10 Age Category
NOTES:

Specifications subject to change without notice.


Specifications

Engine
Engine Type SOHC, 4-Stroke, 2-Valve
Displacement 90 cc
Bore x Stroke 47 mm x 51.8 mm
Cylinders Single
Engine Cooling Air
Alternator 5 amp
Chassis
Front Suspension Single A-Arm
Front Travel 2.8 in. (7.1 cm)
Front Brake Type Drum
Front Tires 20x7-8
Rear Travel 2.9 in. (7.3 cm)
Rear Suspension Swing Arm
Rear Brake Type Hydraulic Disc
Rear Tires 19x8-8
Dimensions/Capacities
Dry Weight 265 lbs (120.2 kg)
Front Rack Capacity 10 lbs (4.5 kg)
Rear Rack Capacity 15 lbs (6.8 kg)
Fuel Capacity 1.45 gal (5.5 l)
Ground Clearance 7.3 in. (18.5 cm)
Machine Dimensions (LxWxH) 57.8 x 34.5 x 37.9 in. (146.8 x 87.6 x 96.2 cm)
Wheelbase 38.4 in. (97.5 cm)
Drive Train
Drive Train 2 WD
Transmission Automatic CVT
General
Lighting Lighting: Headlights; Lighting : Two headlights and a taillight
Colors Green
